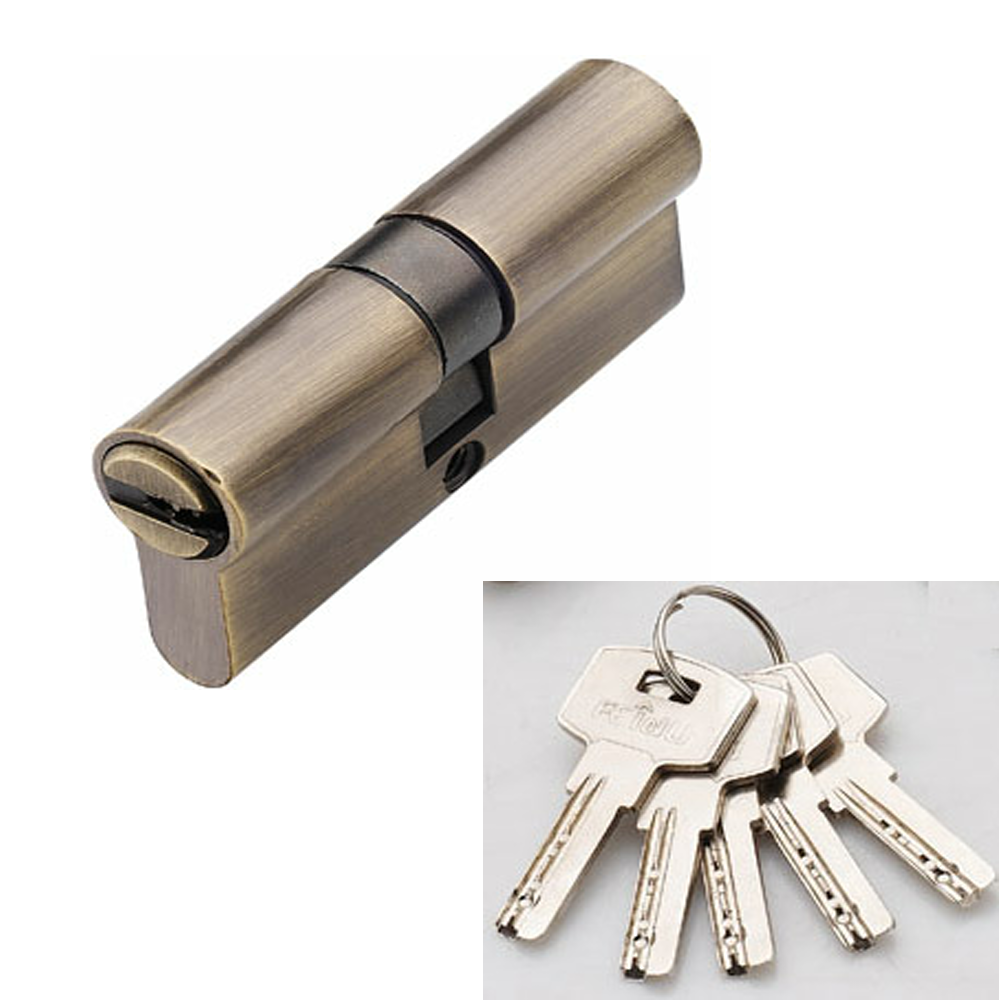

Door Cylinders -70mm Double Open with 5 Computer Brass Keys
- Assorted for Door Handles And Mortise Lock Bodies.
Door Cylinders -70mm Double Open with 5 Computer Brass Keys
Brand | Kwilage |
| Name | Door Cylinder |
| Item Model No. | DB-70 5CBK |
| Lock Type | Key Lock |
| Material | Brass, OEM can by Zinc with Brass Core, or Aluminium with Iron Core, etc. |
| Recommanded Uses For Product | Storefront door lock,Keyed mortise cylinder,commercial door locks |
| Style | 1 Set, Keyed Both Sides |
| Color | AB( OEM can by: SN, GP, SB, AC) |
| Included Components | Fixing Screws |
| Item Dimention LXWXH | 150X30X40mm |
Remarks:

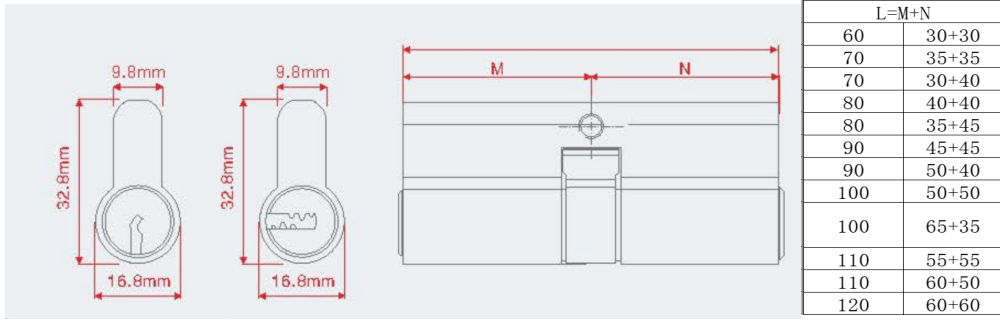

The cylinder perimeter is:32.8X16.8X9.8mm
The International standard cylinder perimeter is:33X17X10mm
There are also smaller cylinder perimeter as：32.5X16.5X9.5mm
Therefore, need to specify the cylinder perimeter before order.
